Welcome to Endura-Form

Ideal for a multitude of uses and easy to install. Strong, tough, long lasting and reusable. Endura-Form installations can be temporary or permanent, portable or stationary. Endura-Form panels are made from recycled materials and are recyclable.

The Endura-Form panel is a single, reversable panel that locks together in a myriad of configurations for lots of different applications. As the animation shows, pipes and cabling can be run through them in either direction. They can also be fitting in overlapping configurations for continuous interlocking layouts. They can be bolted together or left unbolted. They are extremely rigid and strong and are not affected by weather. They’re made from recycled material and are themselves 100% recyclable. Panels are 48″ x 32″ and weigh 32 lbs each, 24 bolts are required per panel (equivalent to 10 sq ft.).

This video demonstrates the radiant heat capabilities of the Endura-Form interlocking single form factor construction panel. While this example is mounted on a truck (using the truck’s own engine for heat), the same principle applies to installations of any size and applications – anywhere where snow and ice build-up are a problem.

Note: The Endura-Form Multi Purpose Construction Panel is Patent Pending in Canada, the United States and Europe.

Products

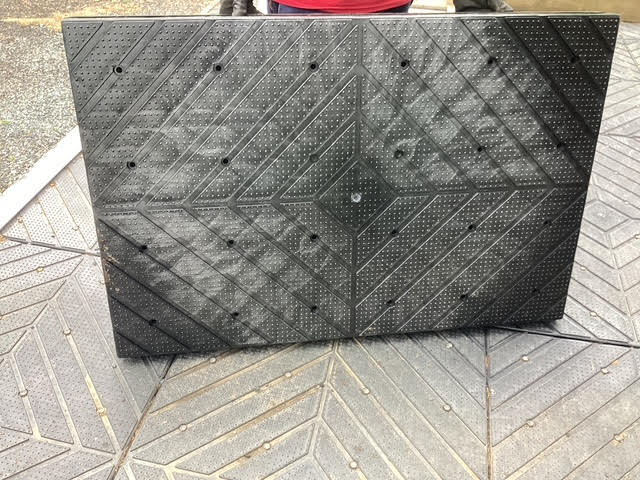

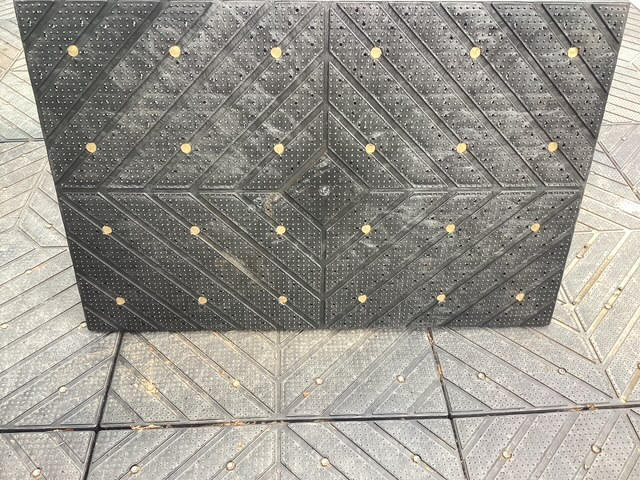

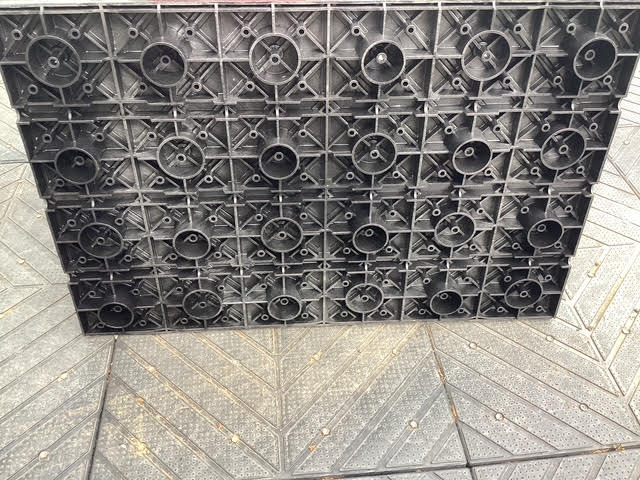

What’s so special about the Endura-Form panel? The Endura-Form panel is an injection moulded plastic resin panel with one side textured and grooved and the other side socketed. The sockets are designed to interlock (male/female) with other identical panels. This allows you to create super-strong panel units or they can be offset for bigger panel units. Panels can be put together easily with or without bolts and assembled or disassembled with a minimum of fuss. The panels are designed to allow pipes, cables, wires and rods to be installed in either direction. They can be made from 100% recycled or virgin material and are 100% recyclable.

Endura-Form panels are tough, super-strong and easy to handle. Individual panels measure 32″ x 48″ x 2″ (two interlocked panels make one unit 4″ high). They weigh 32 lbs per panel. Panels can be cut or machined with standard tools. They have been tested to withstand up to 803 psi.


The above illustrations show how two identical Endura-Form panels interlock to form a simple unit.

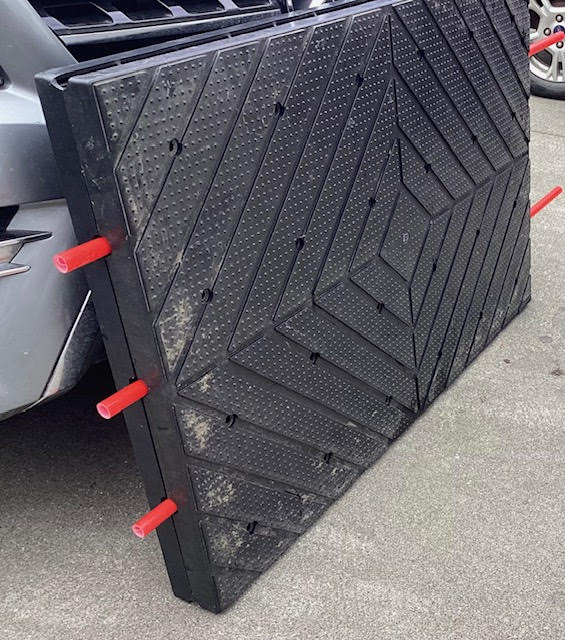

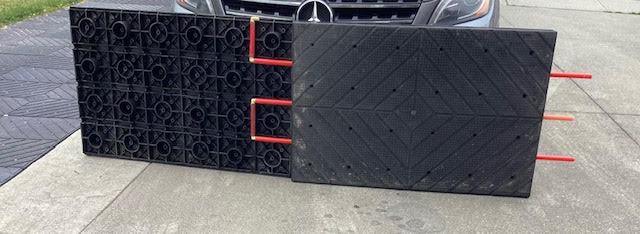

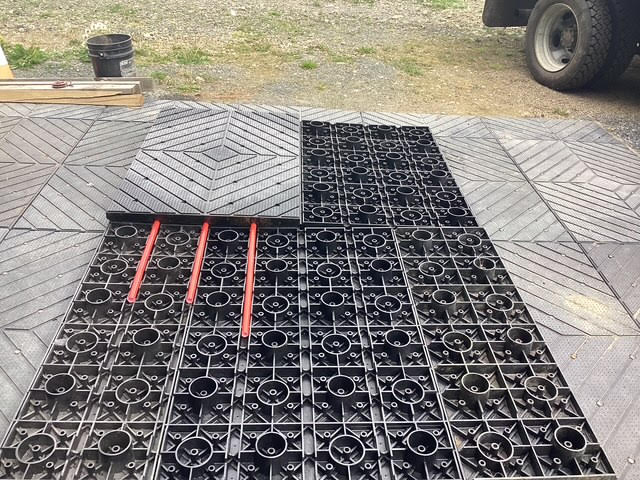

Endura-Form panels are made to allow running heating pipes and wires to provide an easy way to install radiant heat indoors or out.

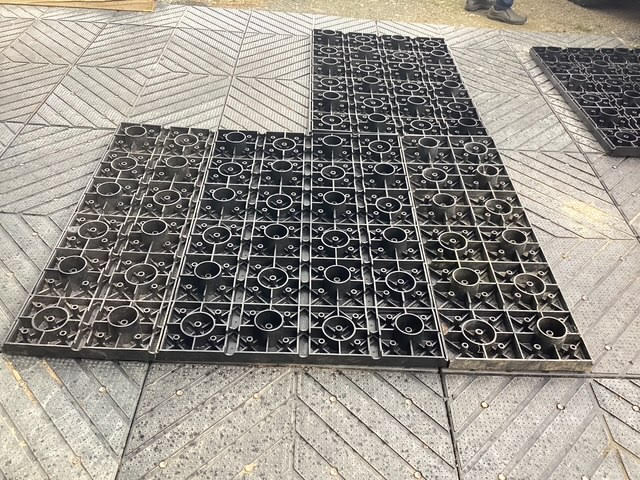

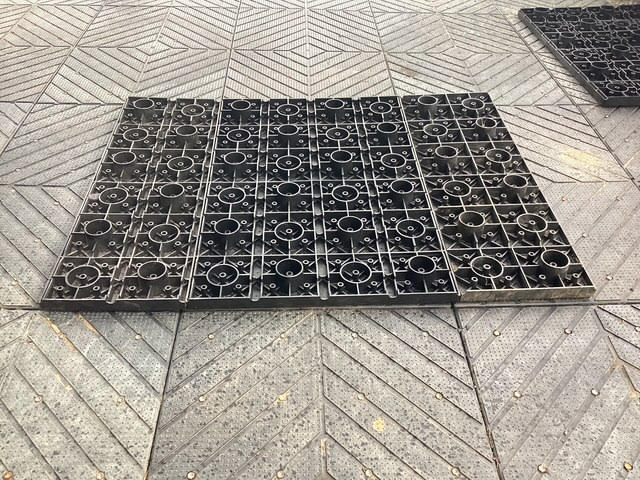

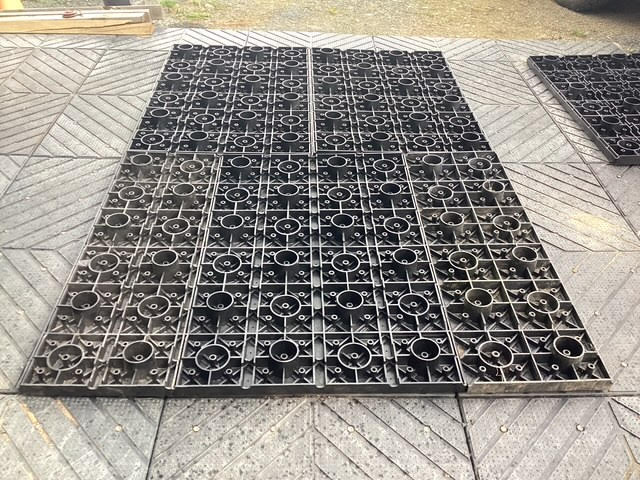

The above drawings show the options for combining panels to make discreet or interlocking panel installations.

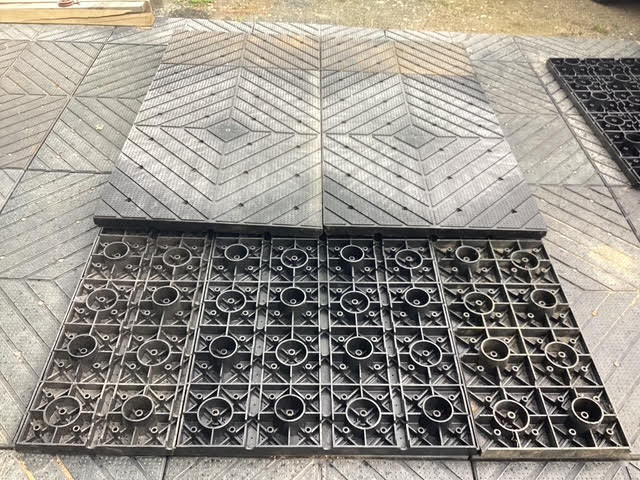

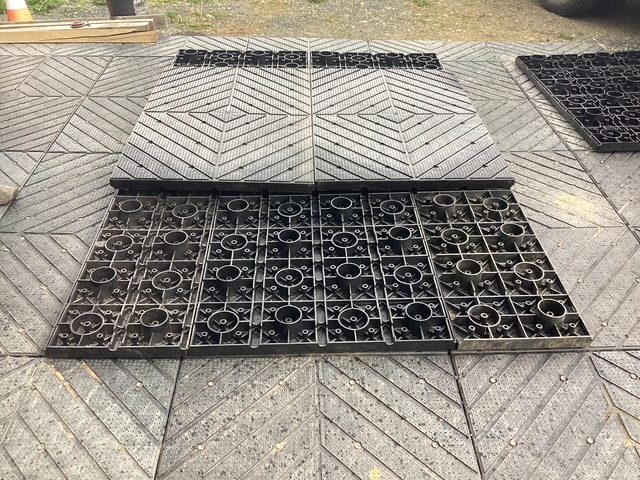

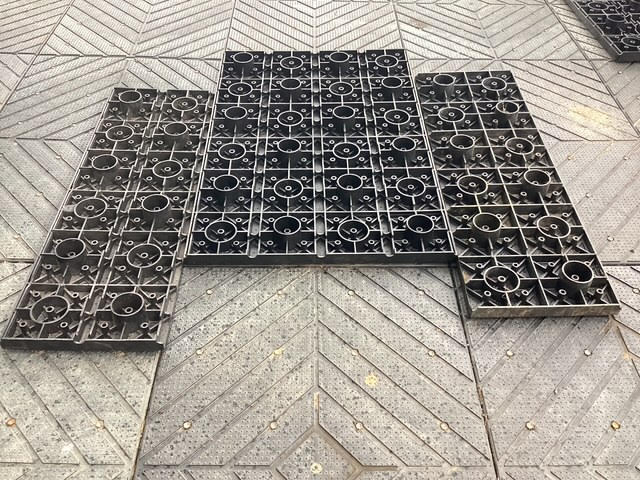

These drawings show another way of combining Endura-Form panels into larger interlocking units – there are lots of ways to combine Endura-Form panels to meet your needs – including the ones you
haven’t thought of yet.

Commercial Applications

Endura-Form Multi Purpose Construction Panels are ideal for a wide array of commercial and industrial uses. Great for construction sites, yards, factory and workshops and aviation. They’re also ideal for roadways, floors, pads, platforms and walkways. Easy to install and disassemble and they’re portable. They can be used multitude of different layouts – great for temporary or permanent structures. Endura-Form panels are made to allow structural or heating pipes and wires to be run through them provide extra strong installations as well as an easy way to provide radiant heat indoors or out. Here is a list of some of Endura-Form’s many applications:

  • Temporary or permanent roadways
  • Vertical retaining wall(s)
  • Heated flooring/walkways
  • Heated flooring
  • Runways – temporary or permanent
  • Taxiways, Parking and Refuelling Aprons
  • Helicopter Pads
  • De-icing Decks
  • Equipment Pads
  • Hanger Floors
  • Aviation wash pit
  • Hazardous materials spill containment system

Roadways

Endura-Form panels make great temporary or permanent roadways.

Airport Passenger Boarding Bridge

Endura-Form panels can provide a super strong deck that can be easily equipped with radiant heat piping to keep the passenger boarding bridge paths clear in the toughest weather. Endura-Form’s individual interlocking panels sandwich and protect the heating pipes while diffusing heat evenly. For best performance, heating pipes can be spaced at 8″ intervals. Drainage through and around the panels can be provided if necessary.

Radiant Heat Capablities

Endura-Form panels have the unique feature of being easily fitted with heating lines to provide heat, ground de-icing and to prevent snow build-up.

Agriculture

Endura-Form Multi Purpose construction panels have a myriad of uses around the farm and greenhouse. For platforms, decks, floors, drives, walkways and more. Easy to install and dis-assemble, portable, flexible layouts – great for temporary or permanent uses.

Residential Applications

Endura-Form multi purpose construction panels are great for residential use. For decks, floors, drives, walkways and more. Easy to install and disassemble, portable, flexible layouts great for temporary or permanent uses.The panels are made to allow running heating pipes and wires to provide an easy way to install radiant heat indoors or out. Endura-Form has tons of applications around the home Endura-Form has tons of applications around the home.

Each Endura Form panel has 180 drain holes, as well as ribs to direct the flow to drain holes. This allows the free drainage of water. Drain holes can be fitted with screens to prevent plugging.

Before using Endura-Form Multi-Purpose Construction Panels, Users are required to read and understand the instructions on proper installation of the panels. Failure to do so will void the warranty. For warranty information please our support page.

White Papers

Please download the following Endura-Form white papers in PDF format.

Case Studies:

  • British Columbia Institute of Technology 2008 Stress Test Final Report PDF

Residential Applications:

Commercial Applications:

  • Agricultural PDF
  • Airport De-icing Deck PDF
  • Airport Passenger Boarding Bridges PDF
  • ATV Road / Track way PDF
  • Aviation PDF
  • Large Scale Heating PDF
  • Puvinirtuq Airport Project PDF
  • Shop Floor Installation PDF
  • Walkway with Radiant Heat PDF
  • Wash Pit / Maintenance Facility PDF

Booklets:

  • Endura-Form 2013 PDF

Media:

  • Fort Nelson News 11/25/08 PDF

Support

Before using Endura-Form Multi-Purpose Construction Panels, users are required to read and understand the instructions on proper installation of the panels. Failure to do so will void the warranty. For warranty information please see page four of the instructions.

Download installation instructions PDF
